Easy to operate, intelligent: one button to start
Energy saving: electromagnetic heating and oil heating are combined, fast heating,high uilization rate ofheat energy
High safetyfactor: external coverdesign, safe and reliable operation
Hot knife slitting:special for all kinds ofdifferent film slitting (OPP,PET,PVC) easy toadjust, correction hot knife,high cutting accurac)
Chain knife cutting: specifcally designed for cutting various types offIms (OPP, PETPVC) for easy adjustment, with a small tail fiIm
|
Max Paper size (W*L) |
1080×1200(mm) |
|
Min Paper size (W*L) |
350×300(mm) |
|
Paper weight (g/m²) |
≥100, ≤500 |
|
Applicable film |
Opp, BOPP, PET, Aluminum-coated film, laser film, pre-coated film |
|
The height of the paper pile for feeding |
1270mm |
|
The height of the paper collection stack |
1270mm |
|
Mechanical speed |
0-100m/min |
|
Total power |
55KW |
|
Working power |
Glue Coating style: 25-30Kw/h Pre-coating style: 15-20kw/h |
|
Overall Dimensions (L*W*H) |
11860×2700×2800 (mm) |
|
Feeder unit |
① Three-sided direct push and pre-stacking dual-purpose, ② Paper changing without stopping the machine, ③ big screen Monitoring, ④ Servo feida numerical control positioning ⑤ Servo system shaftless Feida, ⑥ Feida up and down electric adjustment |
|
Powder cleaning unit |
① Servo side gauge overlap, ② Automatic shutdown due to paper shortage ③ Double-sheet induction device, ④ Hot-press electrostatic powder removal, ⑤ inkjet coding platform.(optional) |
|
Host Unit |
①φ800 double-layer built-in oil temperature drying roller, φ370 pressing roller, ② Servo coating motor ③ Dual electromagnetic + intelligent heating with heat transfer oil, ④ One-click start of the operating system ⑤ Hydraulic lifting platform for film changing |
|
Film cutting unit |
① Servo hot knife slitting + rotating cutter slitting + sandpaper punching slitting ② Servo automatic deviation correction ③ servo cutter numerical control positioning, ④ Patented hot tool photoelectric structure |
|
Paper Collection Unit |
① Wavy paper style collection , ② Neat Paper on three sides ③ Double-sheet waste discharge, ④ Servo side racket numerical control positioning ⑤ Automatic plate changing without stopping the machine |
| Hot cutter type | YS-F-R108 | YS-F-R108M | YS-F-R108L | YS-F-R130G |
| Chain cutler type | YS-F-L108 | YS-F-L108M | YS-F-L108L | YS-F-L130G |
| Standard type | YS-F-S108 | YS-F-S108M | YS-F-S108L | YS-F-S130G |
| Mechanical | 20-100m/min | 20-100m/min | 20-100m/min | 20-100m/min |
| Speed Applicable | 100-500g | 100-500g | 100-500g | 100-500g |
| paper gram | 1000×1080mm | 1200×1080mm | 1450×1080mm | 1650×1300mm |
| The maximum available size | 300×350mm | 300×350mm | 300×350mm | 300×350mm |
| The minimum avalable size | 60kw | 60kw | 60kw | 60kw |
| Total electricity consumption | 10000kg | 10000kg | 10500kg | 11000kg |
| Machine weight Machine size | 11300×2200×22900mm | 11500×2200×2900mm | 11800×2200×2900mm | 12500×2400×2900mm |

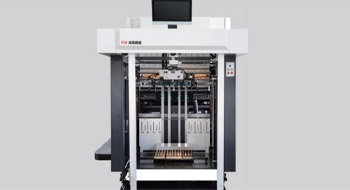

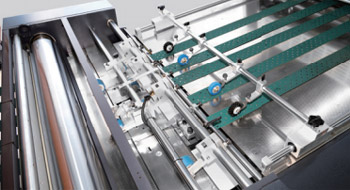

Strong four feed and four suction, stable paperfeeding. Continuous paper feeding without stop-ping the machine.

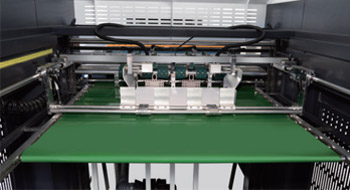

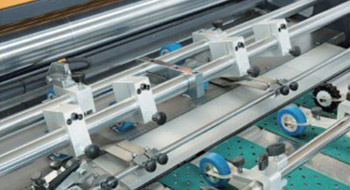

Adjustment-free negative pressure adsorp-tion, slide rail adjustment, saving time andeffort.
The servo motor controls the pull gauge toautomatically align, simple operation andprecise positioning.

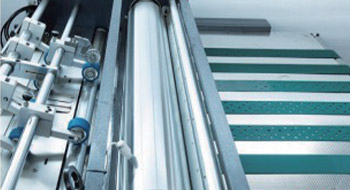

Effectively remove dust from the surface ofpaper, increase the brightness of fIm coat-ing, and save glue usage.

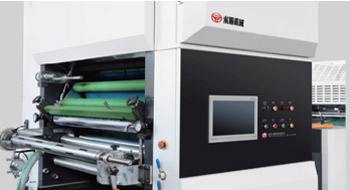

One-key start, simple operation, hanging filmdevice, can be operated by one person.

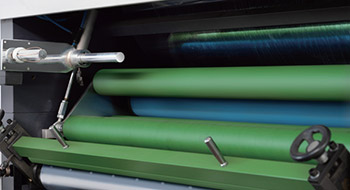

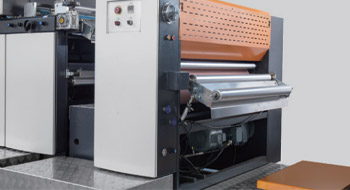

Adopting dual steel roller transmission forgluing, with an accuracy of up to 3g/m; Adopting Teflon treatment to achieve hightemperature resistance, non adhesive andother effects.

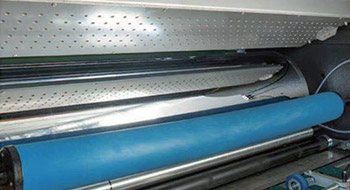

Electromagnetic heating and oil heating are now combined, with fast heating and high thermal energy utilization.
Specially designed for high-end-solid sub-strate printing film products. Greatly improvethe brightness and peel strength of the product, especially suitable for difficult and rigorousprocesses such as deep embossing.
Three sided paper alignment device, count-ing function, corrugated paper output, auto-matic waste discharge, paper blockagedeceleration, automatic paper replacement,and one click positioning for paper tapping.

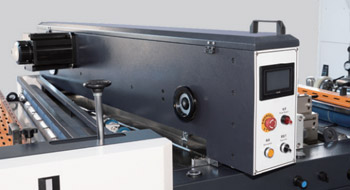

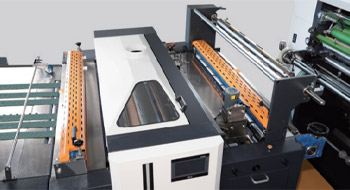

Suitable for all fIms, especially for PET fIms Aluminized film, etc.It is characterized by fast cutting speed, precise cutting, and tail cutting. The film is small and can be smoothly entered into the next process.
For PET fIm slitting, there are two modes of cutting To ensure that different materials and colors of paper can be accurately cut.

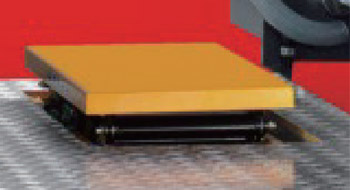

Hydraulic lifting makes film installation easier.
